NEW: Multi-Electrode System GeoTomMK8E1000 RES/IP/SP
  Very Fast High Resolution Multielectrode Multichannel Resistivity System (neu 25 Hz)
  Please ask, there are currently new improved features
now available with wireless transmission


  • 1-D-, 2-D-, 3-D-resistivity-system
  • complex resistivity measurements / selfpotential
  • 7 frequencies (0.3Hz/1.04/2.08/4.16/8.32 Hz/12,5Hz/25Hz)
  • up to 8 channels available / resolution: 10 nV
  • compact case Peli 1520 / PC-controlled
  • easy to use and comfortable Data Aquisition Software
  • electrodes geometries: Line, ares, circle, cylindrical

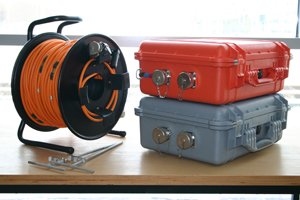

Compact case (size and weight:
7 kg, 50 cm x 40 cm x 20 cm, (15 lb / 20 in x 15 in x 8 in)


  Data Acquisition Software
  The measurement system is controlled via a specific Data Acquisition Software (GeoTom which runs on WIN9x/NT/2K/XP)








more



  Geolog Wheel Odometer 500
  Universal Trigger System; 500 impulses per revolution

  • Trigger System for Data Acquisition
  • Profile direction can be switched to on/off
  • 8 settings
  • Max. 500 impulses per revolution
  • Optionally µC-controlled
  • Easy handling and low weight
  • Adjustable contact pressure
Size and weight: 500 g / 20 cm x 20 cm x 12 cm, resp. 1 lb / 8 in x 8 in x 4,7 in

Image shows the Wheel Odometer mounted to a radar scanner (pulseEKKO 1,2 GHz Sensors & Software)
