Examination of structures and constructions



  Hollow areas

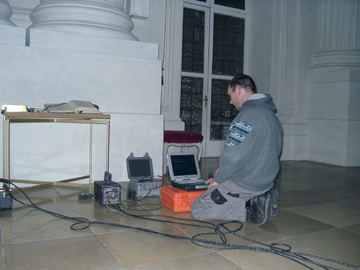

  Remit: Retrieval of an old burial vault in the Theatiner Church in Munich, Germany

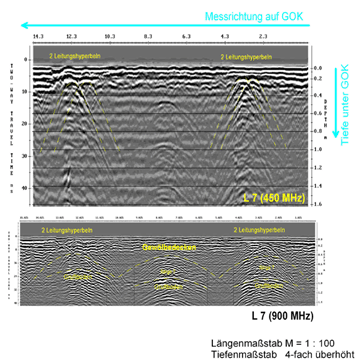

Locating and determination of size and depth



Click to enlarge

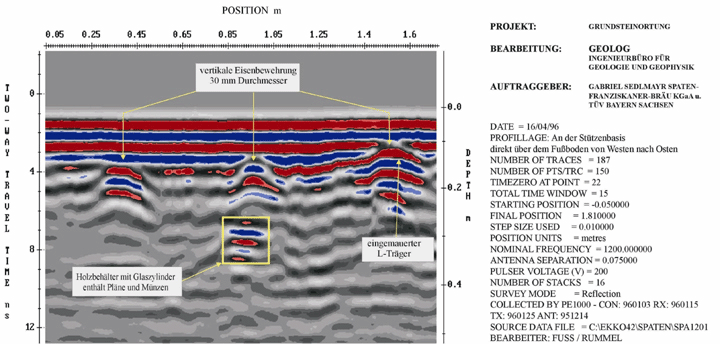

Locating the holding tank of the foundation stones within a fortified concrete pillar Brewery in Munich, Germany

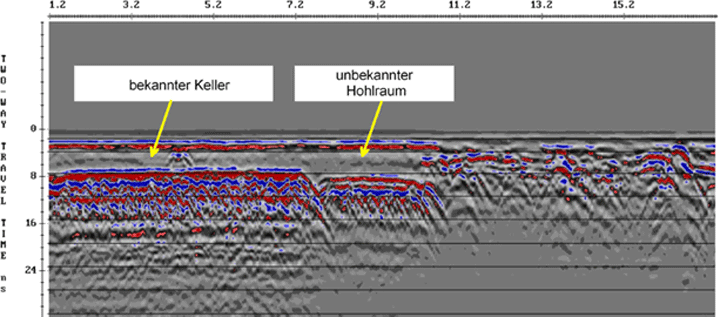

  Successfully found a prior unknown cellar

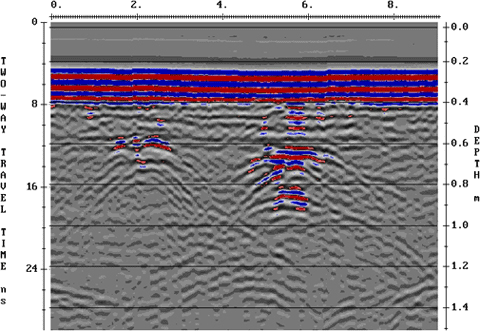

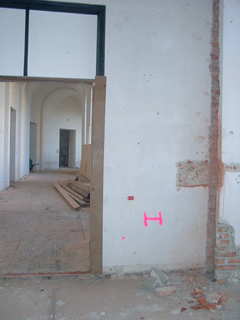

  Exploration of chimneys in the Academy of fine Arts in Munich, Germany





  Masonry: Buildup and inhomogenities

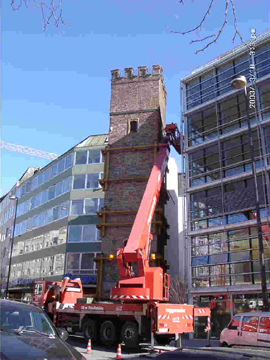

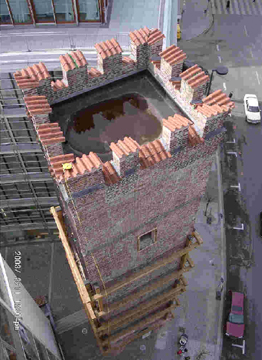

  Remit: Examination of the Löwenturm in Munich, Germany to determine all structures within the masonry and state their size and depth

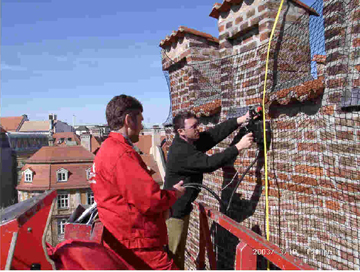

Method of examination:
Georadar at a frequency of 1200 MHz





  Click to enlarge

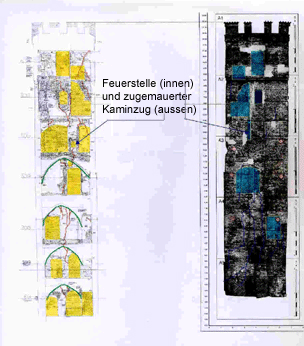

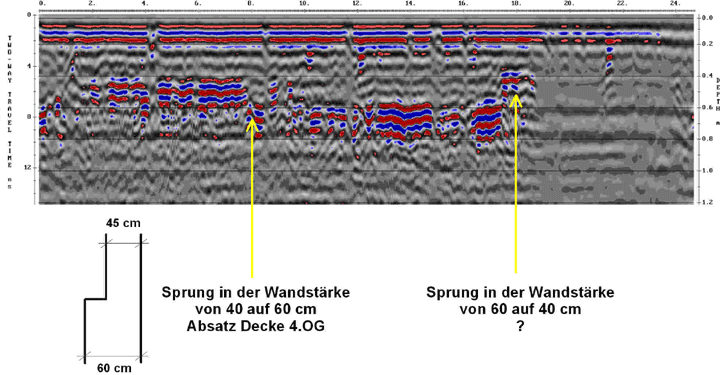

  Interpretation of the radiogram 'Südwand 27'

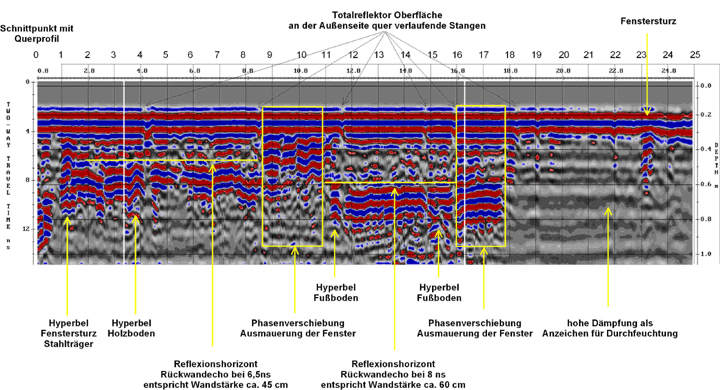

  Interpretation of the radiogram 'Nordwand 28'



  Armoring, overlapping structures

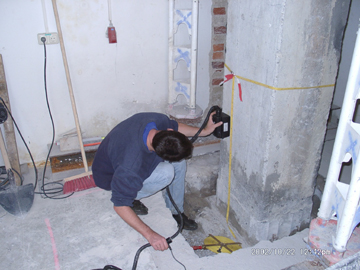

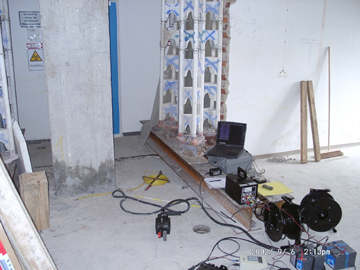

  Remit: Exploration of anchorings underneath the surface, overlapped with concrete

  Clinical Center right to the river Isar in Munich, Germany

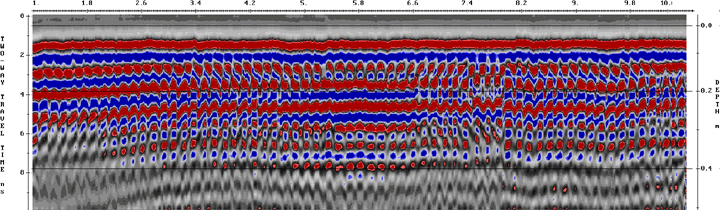

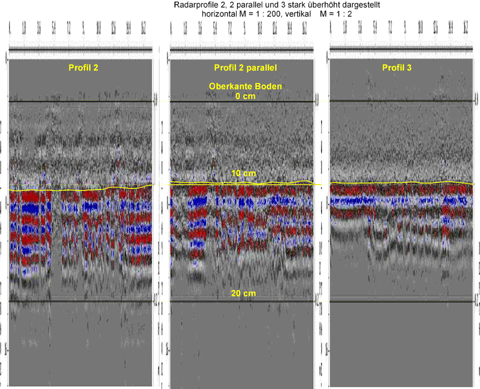

  Steel panel overlapped with concrete, underground parking lot in Munich, Germany




  Beams and Girders

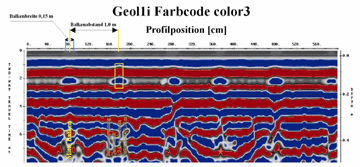

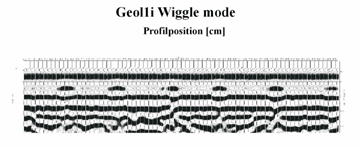

  Remit: Exploration of wooden beams and where necessary their stratification; Examination of ceilings with wooden girders



  Remit: Exploration of Anchors (stabilizations within the artifact)

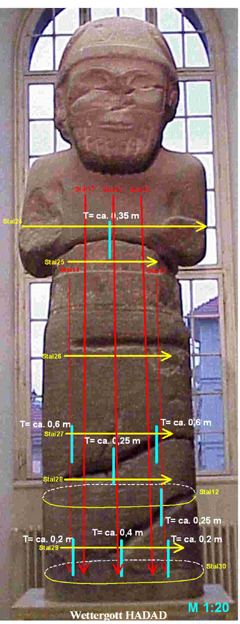

Non-destructive georadar method was used to find dowels and anchors within the monumental statue Hadad in the Pergamon Museum in Berlin, Germany



Click at the picture to enlarge it and see more: Move the mouse over the marked test points and see the radargrams and the positions of the anchors.

Click to enlarge and see more
