Geoelectrics - Geoelectric Tomography

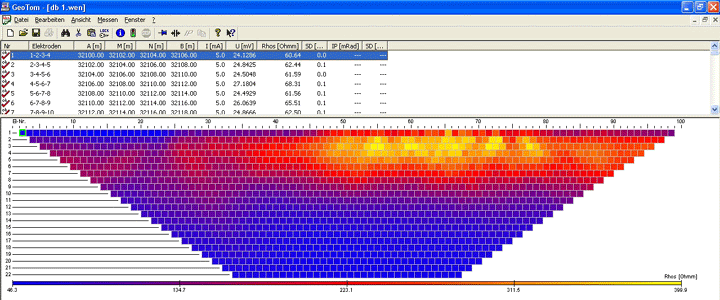

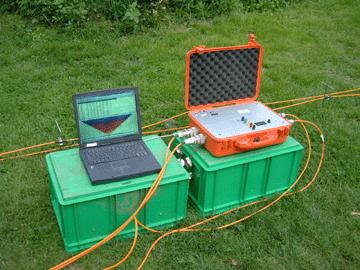

  Using 8 channels the GEOLOG's GeoTom
equipment quickly acquires data from up to 1000 electrodes with takeouts interspaces up to 5 m and penetrates the ground investing up to 100 m.









  Geology in general

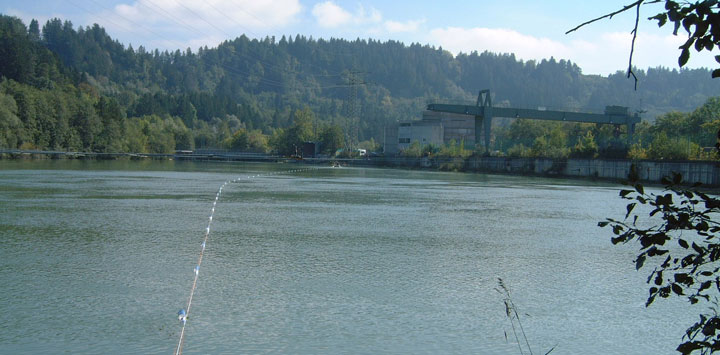

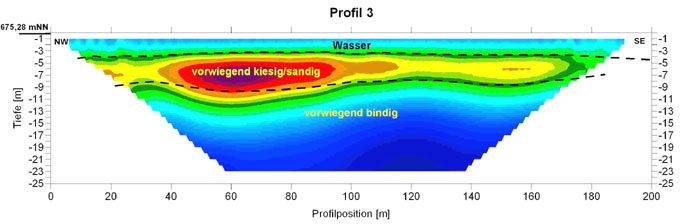

  Remit: Exploration of the thickness of gravel over the tertiary within a dammed lake

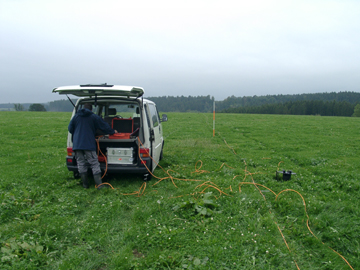

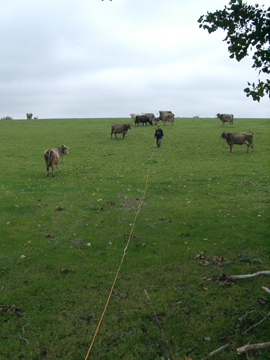

  Exploration of groundwater resources

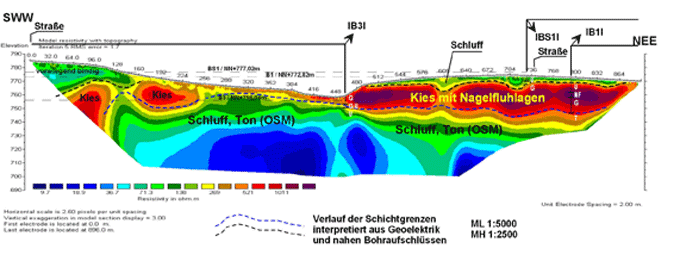

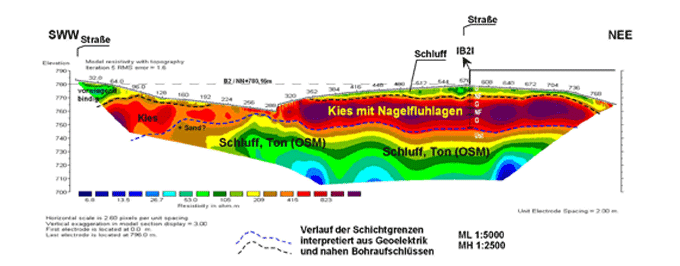

  Remit: Exploration of the optimal drilling location for a new well

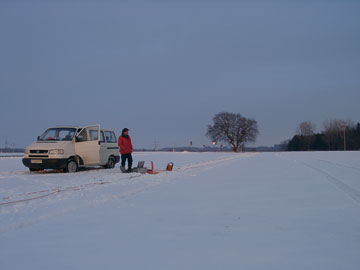

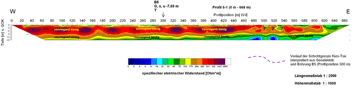

  Remit: Detection of groundwater resources

Click to enlarge





  Exploration of railroad stretches

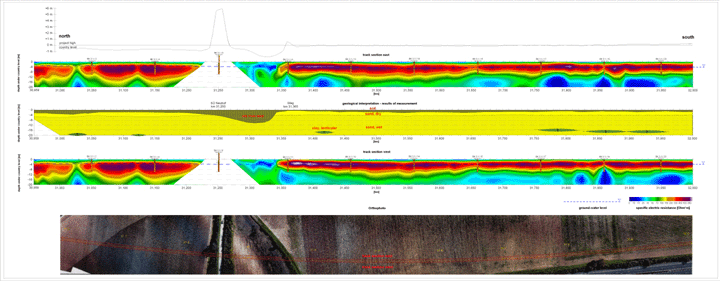

  Remit: Evaluate the ground's potential of subsiding for a new ICE high speed train stretch


Caption for geological interpretation
Silt and fine sands, partly clayey, humous, earth-moisty
Fine to middle sands, partly a little silty, earth-moisty
Sand, partly fine gravels to middle gravels, saturated with water
Zone of cohesive and humous layers

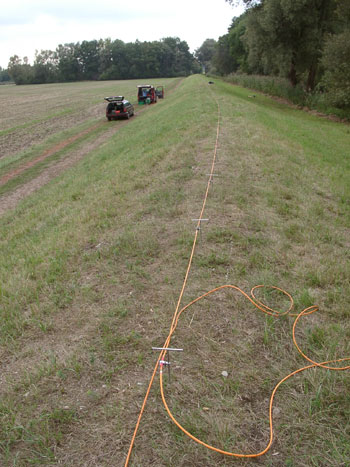

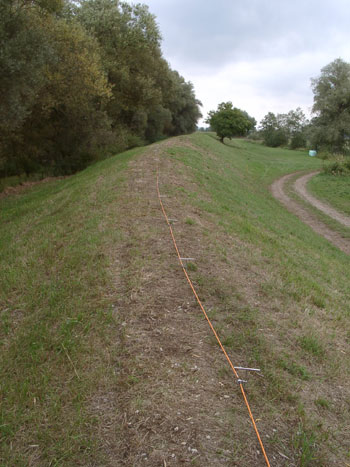

  Exploration of dikes

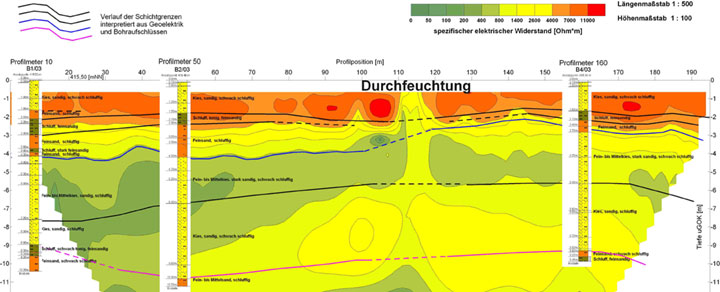

  Remit: Exploration of moist-penetrated zones






  Archeology

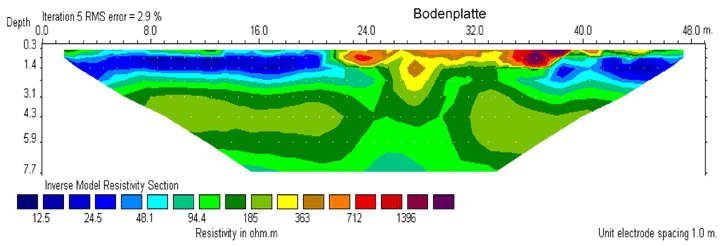

  Remit: Exploration of foundation structures

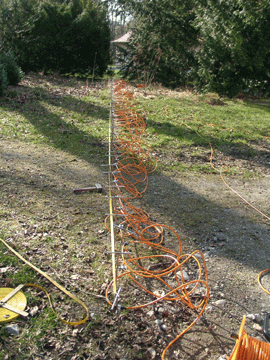

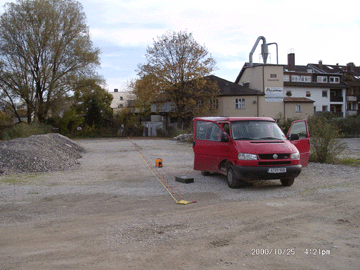

  Abattoir in Rosenheim, Bavaria Castle Fußberg in Gauting, Bavaria





  Detection of deposits

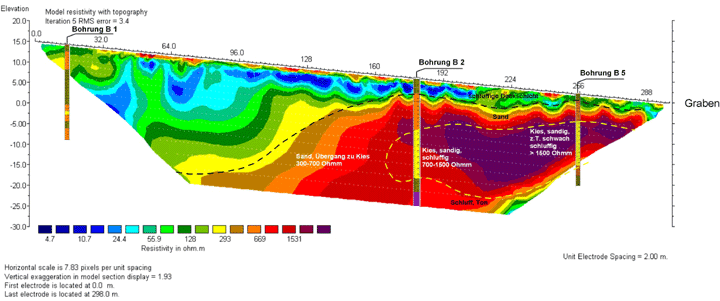

  Remit: Exploration of gravel deposits
